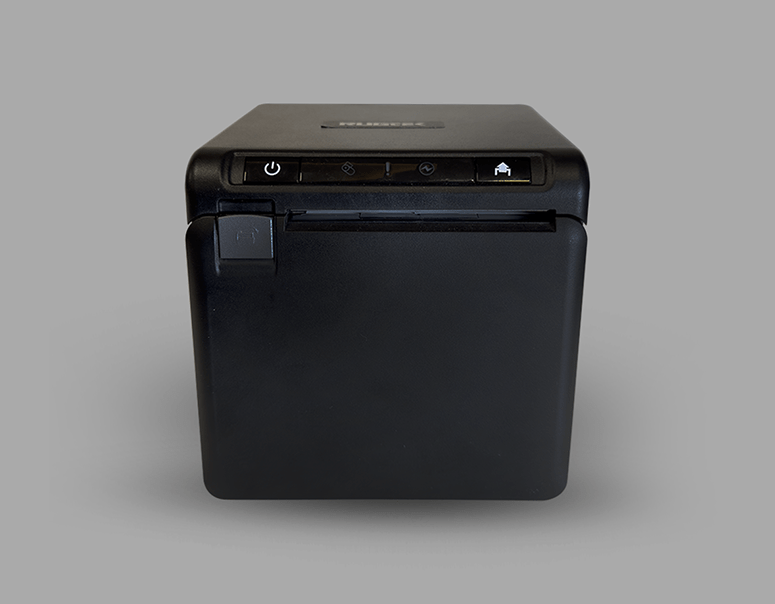

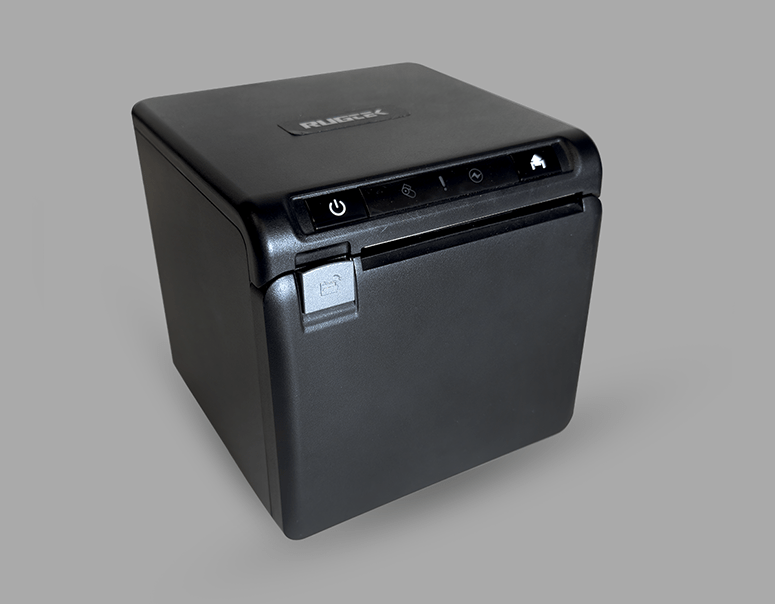

Rugtek-RP82A-Cube
It is your versatile printing solution for various operating systems including Windows, Android, and Linux. Ideal for use in restaurants, department stores, kitchens, convenience stores, specialty retail, and supermarkets.
Key Features:
- Customizable printing setup for header margin, line spacing, receipt width, and barcode height adjustment.
- Fast printing speed of 250mm/s with a resolution of 203dpi.
- Supports paper widths of 72mm and 48mm with a paper compartment capacity of 80mm.
Built-in cutter for easy paper cutting. - Equipped with 8MB SD RAM and 4MB FLASH memory.
- Connectivity options include Ethernet, USB, Bluetooth, and optional 802.11 b/g/n and BT4.0 BLE.
Optional NFC support for wireless connections. - Features a monochromatic lamp and buzzer for notifications.
- Compatible with various systems including XP, Win7, Win8, Win10, iOS, Android, Linux, and MacOS.
- Supports multiple languages for display and printing.
- Compact size (133*135*128 mm) and lightweight design (1.288 Kg).
- Operating temperature range of 0°C to 40°C and storage temperature range of -20°C to 70°C.
Specification
Printing Method | Thermal line/Support QR code Printing | ||
Printing Setup | Support header margin adjustment, support line spacing, the width of the receipt, barcode height adjustment | ||
Printing Speed | 250mm/s | ||
Resolution | 203dpi | ||
Paper Width | 72mm/48mm | ||
Paper compartment Capacity | 80mm | ||
Cutter | Support（support paper back when finish cutting） | ||
SD RAM | 8MB | ||
FLASH | 4MB | ||
Network | |||
with wire | TCP/IP Ethernet interface (10M/100M) +USB | ||
wireless | 802.11 b/g/n, BT4.0 BLE（Optional） | ||
NFC | Optional（only support Wireless） | ||

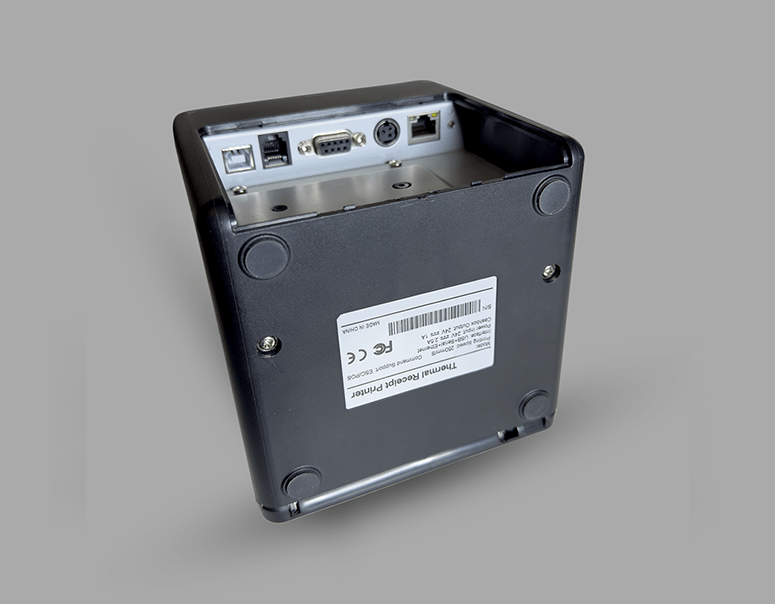

Outside interface | |||
Cash Drawer | 1*RJ11, 1*USB Standard/ethernet | ||
key | Power Key/Cover key/Feed Key | ||
Light | Monochromatic lamp | ||
Light | Monochromatic lamp | ||
Voice Power | buzzer, suona Adapter 24V2.5A | ||
Compatible | Supported system- XP,Win7,Win8,Win10,ios, Android, Linux，MacOS | ||
Language | |||
Display language | Support most languages, individual language to be customized | ||
Printing language | Support most languages, individual language to be customized | ||
Packaging/accessories | USB data line – power line adapter – warranty card – Driver CD – Certificate – quick installation guide | ||
Packaging | Color box or kraft Pearl cotton paper tray | ||
Physical | |||
size | 133*135*128mm | ||
color | black | ||
weight | 1.288KG | ||
Environment parameters | Storage：-20~70 C/ working temperature: 0 C – 40 C Storage humidity：5%—95% /working temperature humidity：20%—85% | ||
Applications: | Restaurant, Department Store, Kitchen, Convenience Store, Specialty Retail, Super market | ||
