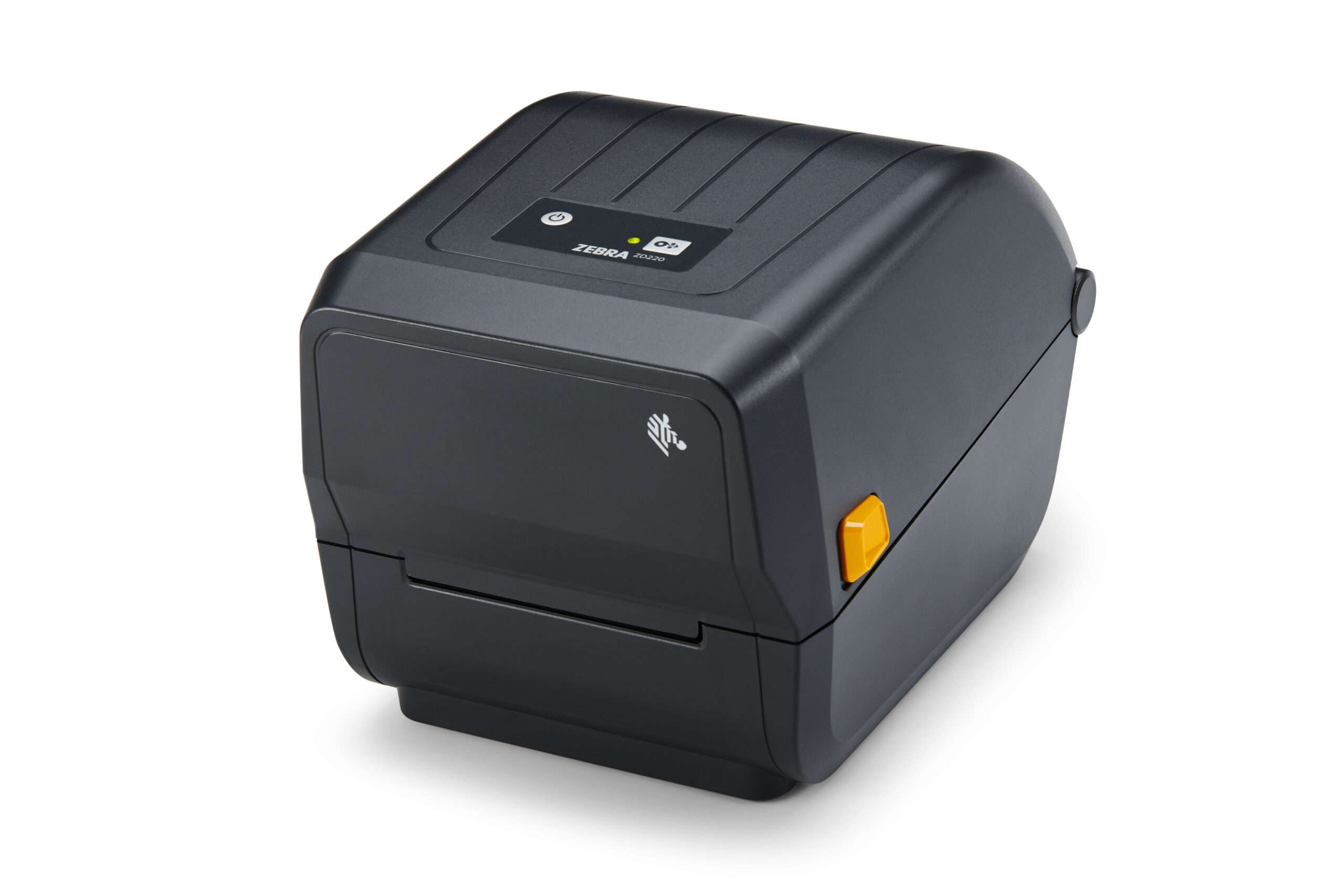

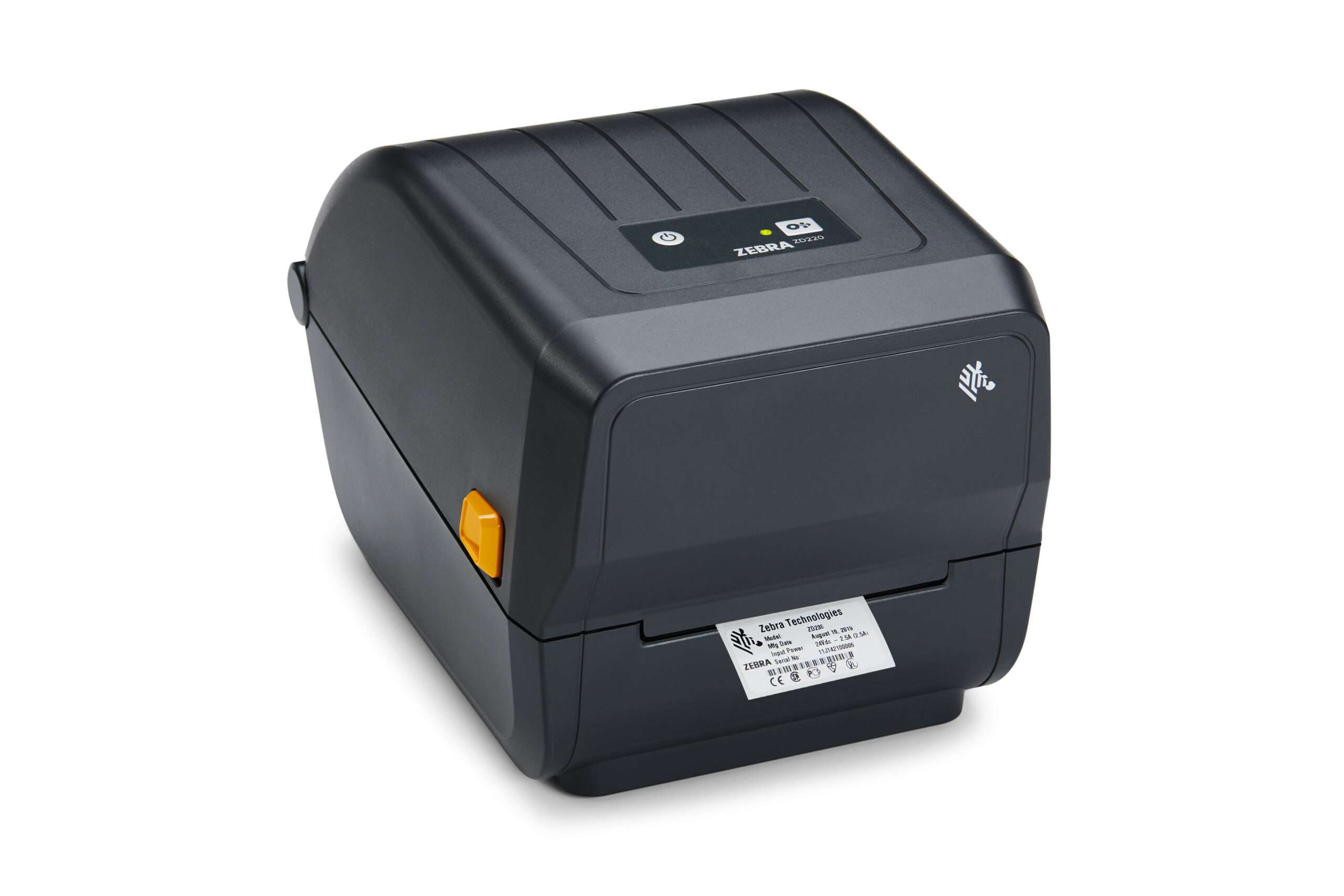

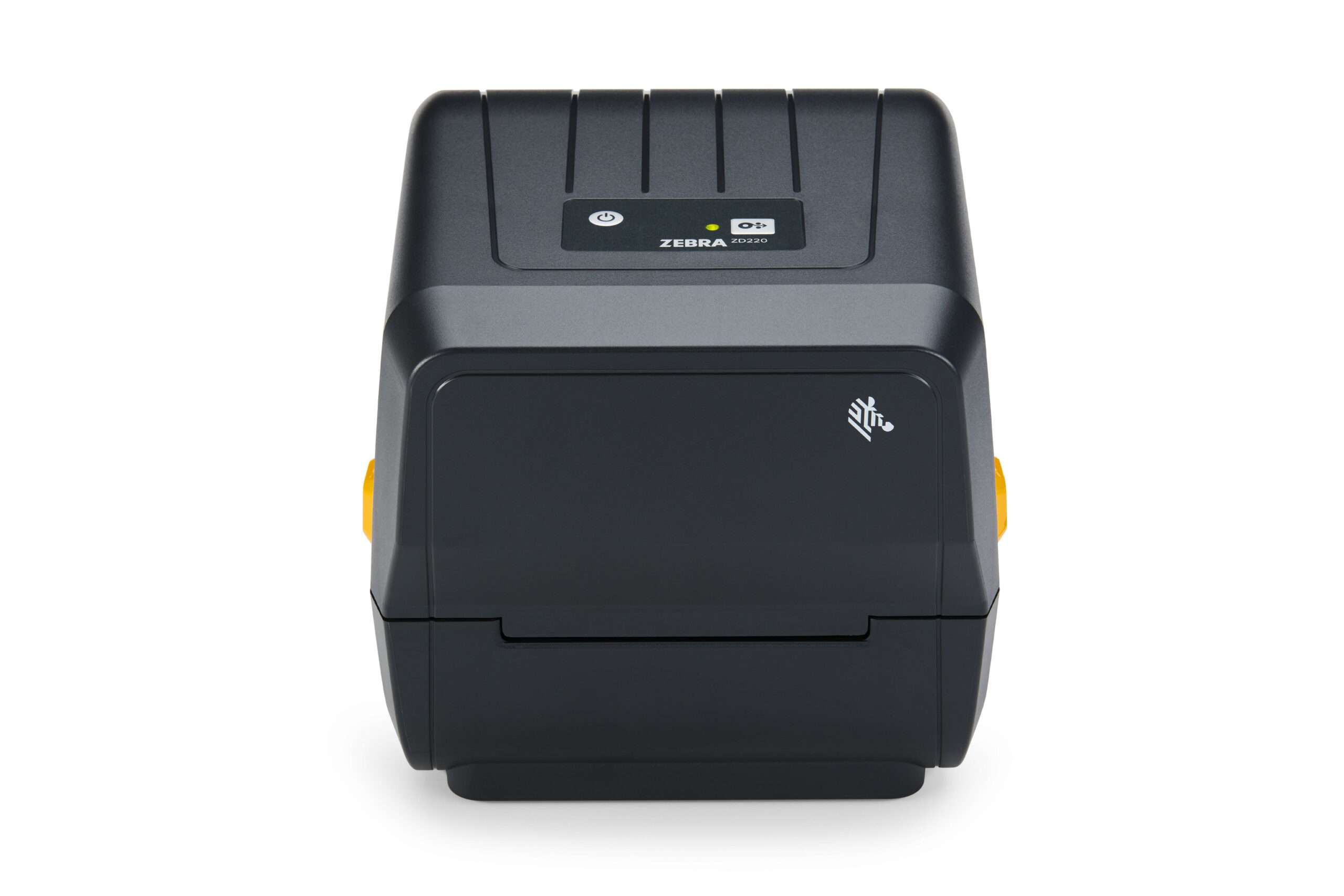

Zebra-ZD230

The ZD230 desktop printer gives you extra features and reliable operation at an affordable price—both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction. And, it offers wireless connectivity for networked, remote printing. Built to last for years, the ZD230 provides an outstanding return on your investment.

Specification

Printer Specifications

Resolution

203 dpi/8 dots per mm

Memory

128 MB Flash; 128 MB SDRAM

Maximum Print Width

4.09 in./104 mm

Programmable Print Speed

6 in./152 mm per second or 4 in./102 mm per second

Media Sensors

Movable black mark sensor, limited range from center to left side
Fixed off-center gap sensor

Firmware

ZPL II; EPL 2; XML

Operating Characteristics

Operating Temp.

40° to 105° F/4.4° to 41° C

Storage Temp.

-40° to 140° F/-40° to 60° C

Operating Humidity

10% to 90% non-condensing

Storage Humidity

5% to 95% non-condensing

Electrical

Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified

Physical Characteristics

Dimensions

Thermal Transfer:
10.5 in. L x 7.75 in. W x 7.5 in. H
267 mm L x 197 mm W x 191 mm H
Direct Thermal:
8.6 in. L x 6.9 in. W x 5.9 in. H
220 mm L x 176 mm W x 151 mm H

Weight

Thermal Transfer:
3.7 lbs./1.7 kg
Direct Thermal:
2.5 lbs./1.1 kg

Operating System

Link-OS® Basic printer operating system
